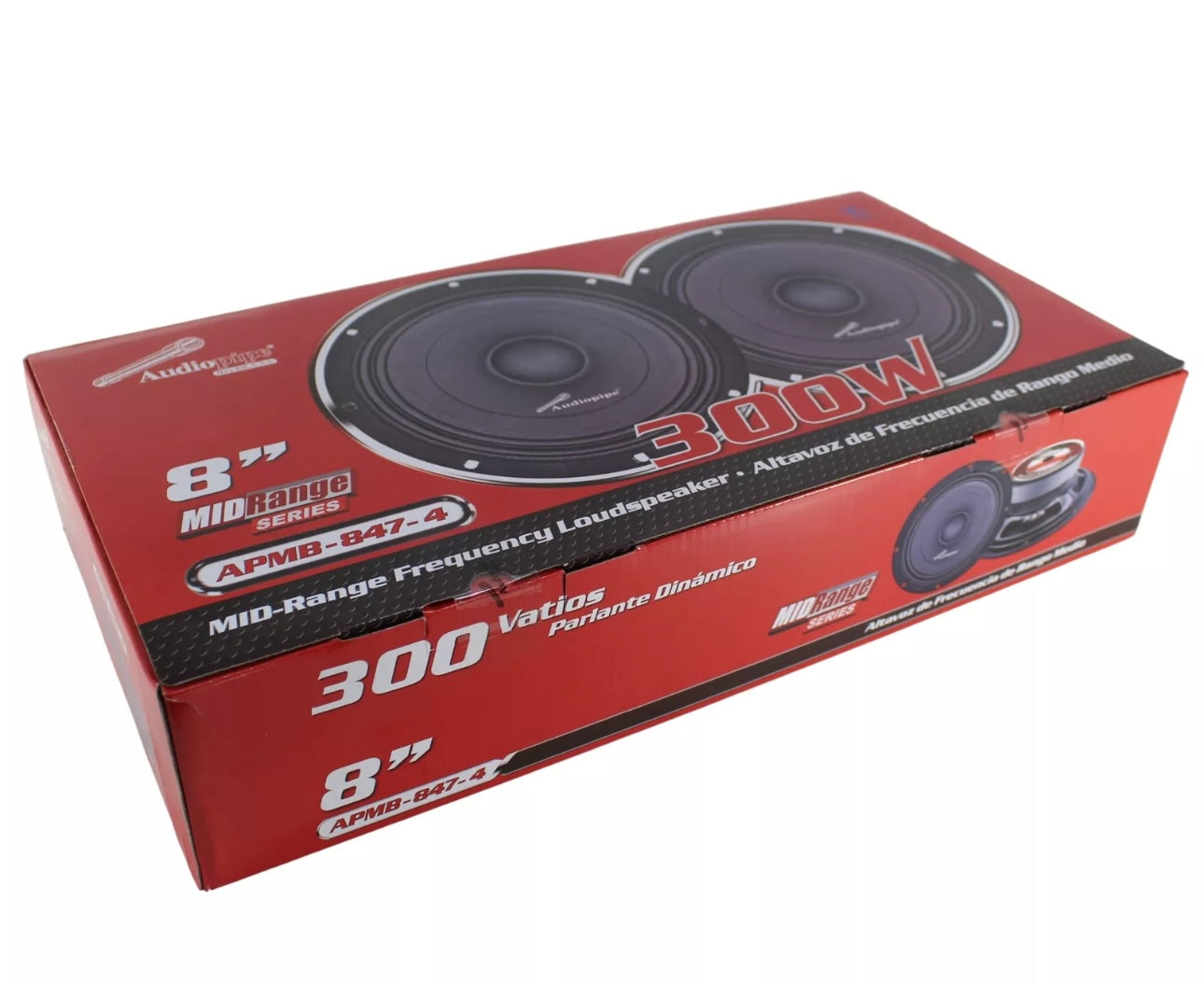

Audiopipe Par 8” (2) APMB-847-4

This Listing Includes:

• (2) 8" 4-Ohm 150W Mid Range Loud Speaker

Enhance your audio system with the Audiopipe High-Power Mid-Range Frequency Loudspeaker. With 300 watts of peak power and a wide frequency response of 70-10,000Hz, experience crystal clear sound and deep bass like never before. The 1.5" KSV voice coil and flat steel basket ensure durability and easy installation, while the 93dB sensitivity guarantees powerful and dynamic performance. Elevate your listening experience with this high-performance loudspeaker.

Technical Specifications:

• Peak Power: 300 Watts

• Continuous Power: 150 Watts RMS

• Frequency Response: 70-10,000Hz

• Sensitivity: 93dB

• Mounting Depth: 68mm / 2.68"

• Impedance: 4 Ohms

• Magnet Material: Ferrite

• Basket Material: Steel

• Voice Coil Diameter: 1.5"

• Voice Coil Former Material: KSV

• Surround Material: Cloth

• Magnet Weight: 30 Oz

Thiele & Small Parameters:

• VAS: 11 L / 0.39 ft3

• Xmax: 2mm

• Fs: 83 Hz

• Qms: 2.6

• Qes: 1.1

• Qts: 0.6

• Mms: 20g

• Cms: 180 mm/N

• BL: 5.9

• Le: 190 uH

• Sd: 204 cm2

• Re: 3.6 ohms

• Mmd: 19g

Dimensions:

• Overall Diameter: 8.25"

• Mounting Diameter: 7.93"

• Baffle Cut-Out: 7"

• Mounting Depth: 2.68"
