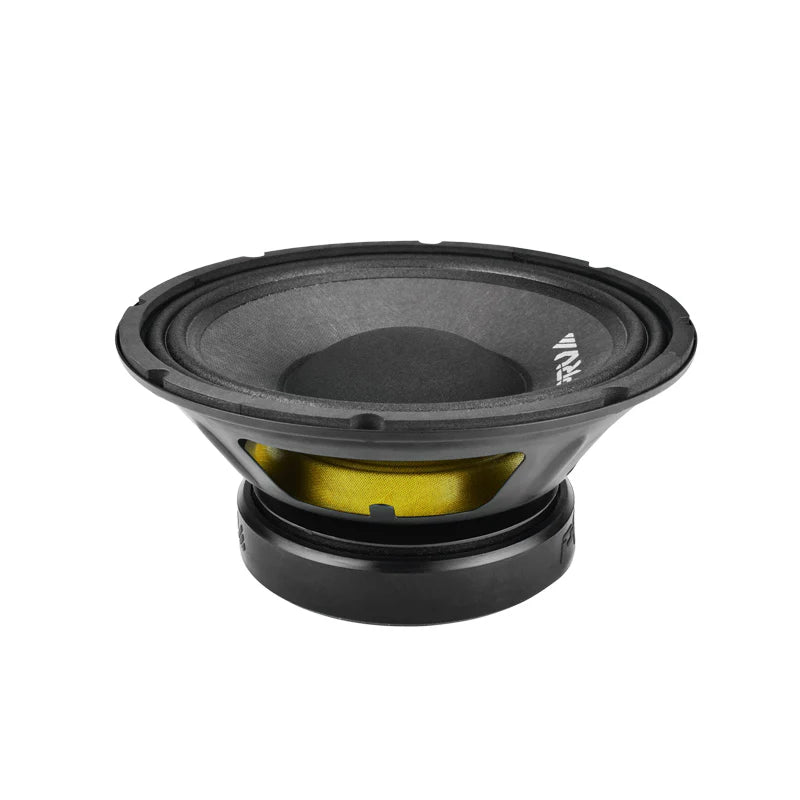

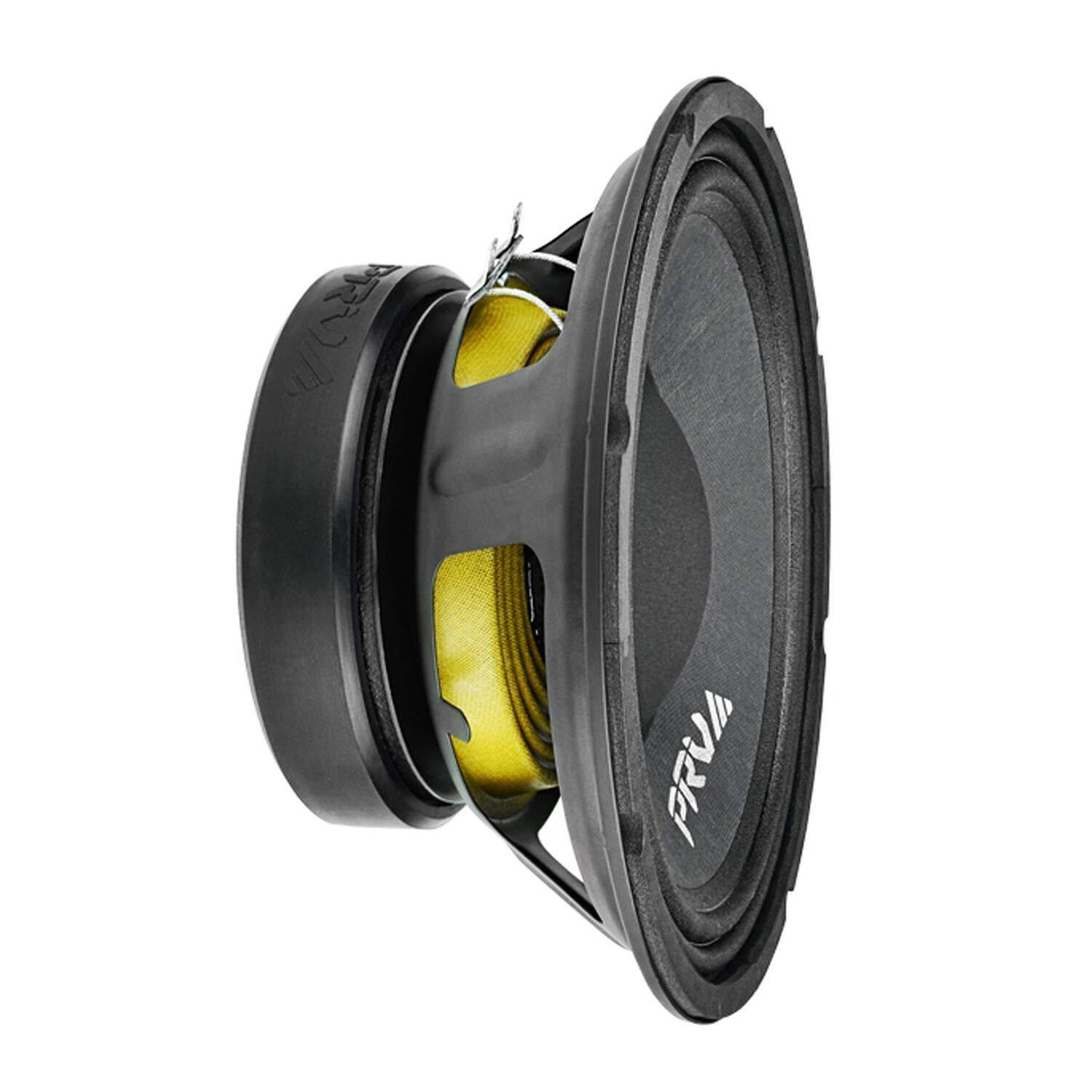

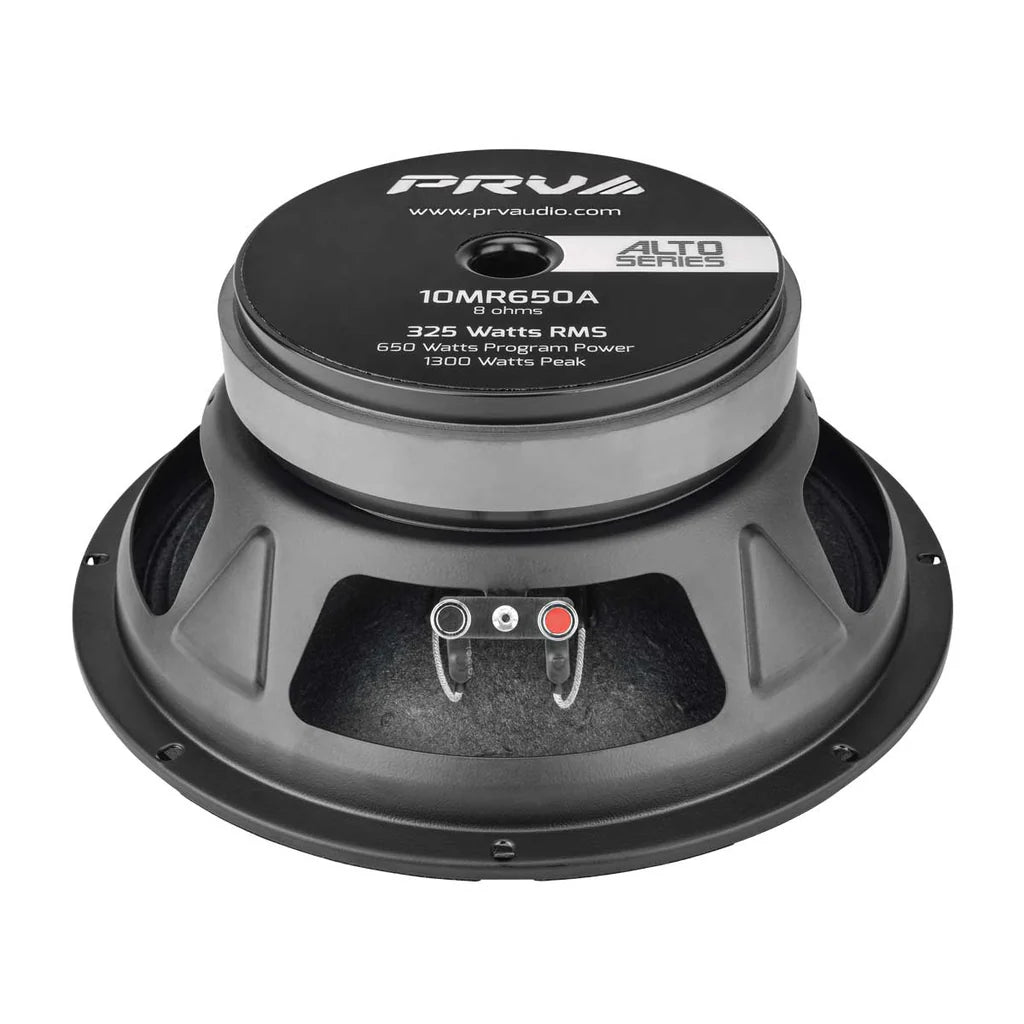

Bocina PRV 10W650A Alto Series

Bocina PRV 10W650A Alto Series

Regular price $74.99 USD
Regular price Sale price $74.99 USD
Sale Sold out

Bocina 10” PRV 650

Envio Gratis a Todo Puerto Rico

  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 325 Watts
  • Program Power: 650 Watts
  • Sensitivity (1W/1m): 97 dB
  • Voice Coil Diameter: 2.5″





Nominal Diameter 10″ (254 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 325 Watts
Program Power 650 Watts
Sensitivity 2.83V at 1m 97 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
150 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 75 – 5,500 Hz
Voice Coil Diameter 2.5″ (65.5 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 13.0 mm
Former Material Kapton
Magnetic Gap Depth 8.0 mm
Frame Material Stamped Steel



EXTRA INFO



Overall Diameter 10.10” (257 mm)
Front Mount Baffle Cutout 9.25” ( 235 mm)
Mounting Depth 4.3” (110 mm)
Overall Depth 4.72” (120 mm)
Net Weight 10.49 Lbs (4.75 kg)
Shipping Weight 11.25 Lbs (5.10 kg)
Carton Dimensions W x L x H 11.02” x 11.02” x 5.98”
(280 x 280 x 152 mm)
