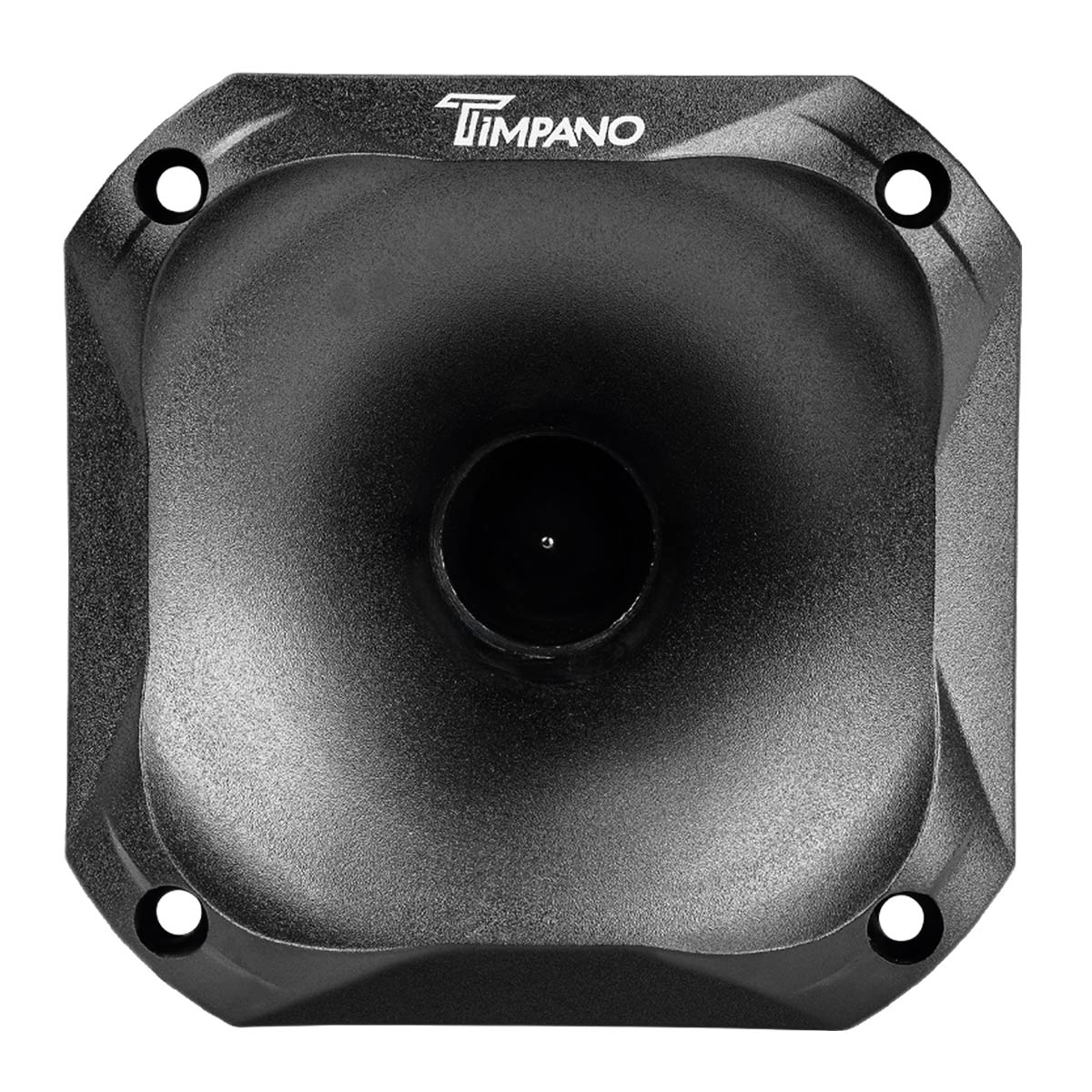

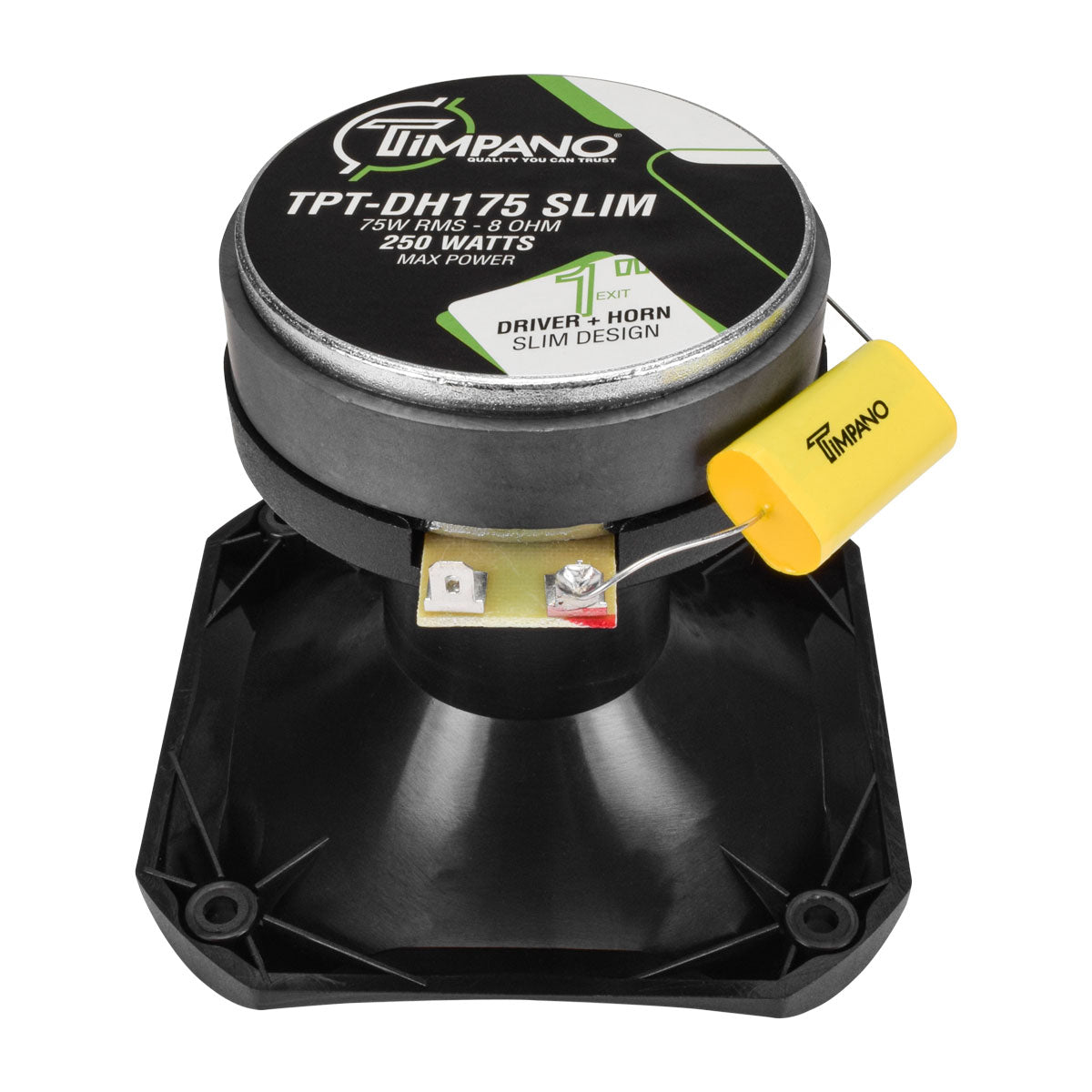

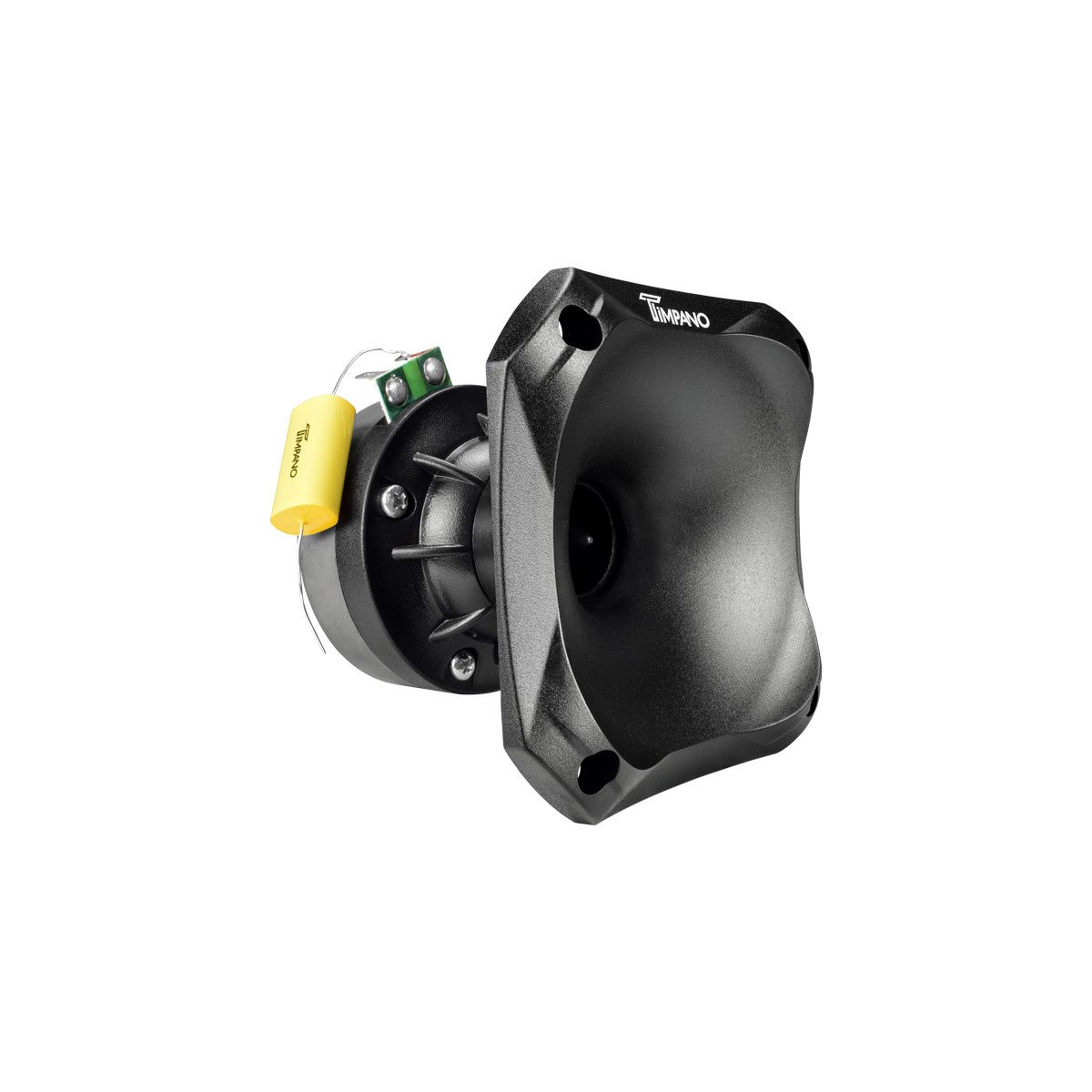

Timpano Driver 1” TPT-DH175 SLIM

Specs:
250 Watts Max Power
75 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 108 dB
Frequency Response: 1.4 kHz – 19 kHz
1″ Voice Coil
Phenolic Diaphragm
Ferrite Driver
Recommended High Pass Filter on TPT-SP4BT DSP Crossover
1400 Hz under 125 Watts of Amplifier RMS Power with 18dB Slope
1200 Hz under 75 Watts of Amplifier RMS Power with 12dB Slope

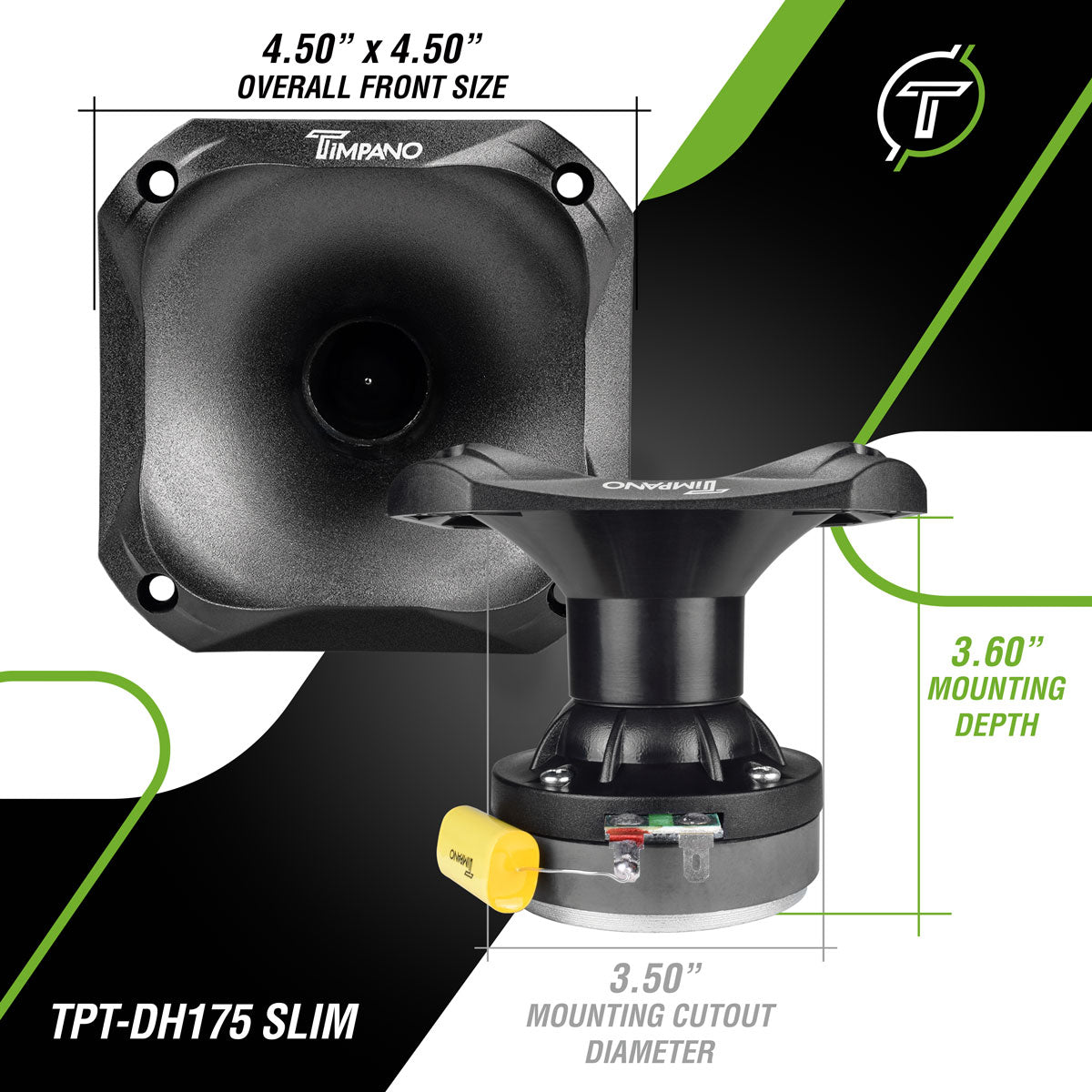

Sizing:
Mounting Depth: 3.60″ (91.5 mm)
Mounting Cutout size: 3.50″ x 3.50″ + Terminal
Overal size: 4.50″ Wide x 4.50″ Length x 4.17″ Height
Weight: 1.10 Lbs
